Hurricane Protection System Levee - New Orleans to Venice

For the U.S. Army Corps of Engineers

For the U.S. Army Corps of Engineers


GOTECH, Inc. surveyed the New Orleans to Venice levee project named City Price to Tropical Bend Levee Project. This project supported the final construction plans and design specification of the "back levees", which are hurricane protection levees built on the Gulf of Mexico side of developed areas along Louisiana Highway 23, located south of New Orleans. GOTECH conducted the topographic and cross section survey, which encompassed over 12 1/2 miles of back levee.


Houma Navigation Canal Lock and Floodgate

For the U.S. Army Corps of Engineers

The Corp implemented the design and construction of a hurricane protection levee system across Southeastern Louisiana. One key element in the levee system is the provision for ship traffic along the Houma Navigation Canal in Terrebonne Parish. A lock and floodgate structure is planned for that area of the levee south of Houma near the community of Dulac. GOTECH, Inc. survey crews worked continuously to provide a full contour map of the seven hundred acre site. Hydro-graphic channel surveys, spoil bank surveys, marsh surveys, cross sections, level loops and baseline traverses were all conducted in accordance with the required Corps accuracy standards. An existing Corps baseline was recovered and verified against the published baseline tabulation. A new sub-baseline was established and monumented on the West Bank of the channel for use in the future construction efforts. GOTECH AutoCad technicians processed the field data and produced a plan view map for the entire site. The mapping sheets showed the bank lines, channels, spoil areas, marsh regional and contours across the area.


I-10 (LA 30 to LA 22) -Ascension Parish

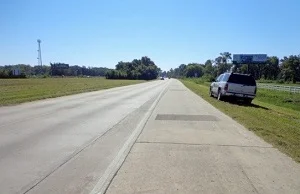

GOTECH conducted the topographic, elevation and utility survey for the 5 mile long I-10 corridor between LA Hwy 73 and LA Hwy 22 in Ascension Parish. The project involved the widening of I-10 from a 4 lane freeway section to a 6 lane freeway section. GOTECH survey personnel tied into control points provided by the Louisiana DOTD and used the horizontal and vertical data as the basis for the survey. GOTECH surveyed the right-of-way limits so that the existing center-line could be established. Cross sections were surveyed at 100 foot intervals from 65’ inside the inner shoulder to 50’ beyond the other shoulder on both the eastbound and west bound travel lanes. GOTECH also surveyed utility line markings and test holes for items such as water lines, gas lines, electrical lines, pipelines and fiber optic lines. Information was also obtained in the field for bridges, such as project stationing for bent center-lines, joint openings, elevations of slab corners, elevations of bent tops, piling size and location, column size and bridge geometry. Additionally, all topographic features in the project area were surveyed.


Union Passenger Terminal Infrastructural Improvements, Phase II

For the New Orleans Regional Planning Commission

For the New Orleans Regional Planning Commission

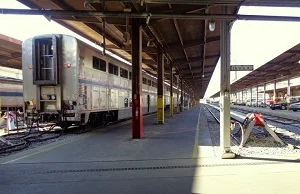

GOTECH provided surveying and mapping for the Union Passenger Terminal (UPT) and Rail Yard Project in New Orleans, Louisiana. The 35 acre site was divided into Task 3 (Amtrak Yard), Task 4 (UPT Lead Track and Clara Interlocking Improvements) and Task 5 (UPT Platform Tracks and Platform Improvements). GOTECH provided cross section elevations and data on topographic features (rails, switches, frogs, ties, ballast, structures, buildings, drains, fences, joints and signs).


Sanitary Sewer Evaluation Survey & Waste Water Master Plan

For the City of Shreveport

For the City of Shreveport

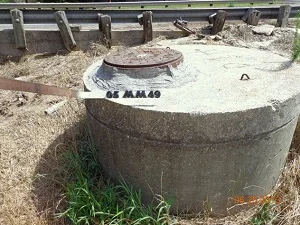

Working as a sub-consultant, GOTECH, Inc. was responsible for the survey of sewer manholes across the city. Approximately 1,500 manholes were surveyed to determine the x, y and z coordinates of the rim and the depth of the manhole. The data was used by others on the modeling phase of the project. The manhole surveys were tied to the city of Shreveport’s monument control datum system.


DOTD Hydrographic Surveying

GOTECH provided hydrographic surveys, boundary surveys, property surveys and right-of-way mapping at various locations in Louisiana on an as needed basis.  Survey sites included:
LA Hwy 1 at the Caminada Bay Bridge in Grand Isle and the realignment of LA 1040 in Tangipahoa Parish, LA.

Other sites included numerous hydrographic (bridge scour) surveys such as:

LA 27 Bridge at Gibbstown, LA | Sabine River I-10 Bridge near Orange, TX | Amite River LA 10 Bridge near Darlington, LA | Amite River LA 64 Bridge at South Watson, LA | Atchafalaya River LA 1 Bridge at Simmesport, LA | Mississippi River Bridge LA 3213 Bridge at Gramercy, LA | Mississippi River Bridge LA 70 Bridge at Donaldsonville, LA | Sabine River LA 12 Bridge near Starks, LA | West Fork Calcasieu River LA 378 Bridge at Westlake, LA | Atchafalaya River I-10 Bridge at Butte LaRose, LA | Pearl River US 90 Bridge at Perlington, LA | Chef Menteur Pass US 90 Bridge in New Orleans, LA | Mermentau River LA 82 Bridge in Grand Chenier, LA | Superior Canal LA 82 Bridge near Grand Chenier, LA | Amite River I-12 Bridges West & East bound lanes | Amite River US 190 Bridges West & East bound lanes | Red River I-20 Bridge | Red River US Hwy 80 Bridge | Red River US 84 Bridge | Lake Bistineau Spillway Bridge at LA 154 | Loggy Bayou Bridge at US 71 | East Pearl River I-10 Bridge | Middle Pearl River I-10 East bound lane & West bound lane Bridges | Tangipahoa River at I-12 Bridge | Tickfaw River at I-12 Bridge | Tchefuncte River at I-12 Bridge | Inner Harbor Navigation Canal at I-10 Bridge | Industrial Canal US 90 Bridge in Danziger, LA
 New Rigolets at US 90 Bridge



I-12 To Bush - St. Tammany Parish

For LA DOTD

For the LA DOTD, GOTECH provided survey services on the Interstate 12 to Bush, LA Project.  The survey work will serve as the basis for a new roadway design connecting the I-12 corridor with roadways to the northeast and southern Mississippi.  The total project area extends over 18 miles in length.  Cross sections and topographic data were surveyed along the proposed alignment in heavily wooded areas and along an abandoned railroad bed.  GOTECH provided elevation data along the route and surveyed details at intersections with existing highways.  The project area was divided into 3 design segments and GOTECH provided survey data on all 3 segments, with surveys covering over 12 miles of the project.




Laurel Ridge Levee Extension Survey -Ascension Parish

This project extended for a distance of approximately 25,000 feet (4 ½ miles) along the eastern edge of Ascension Parish in the Amite River Basin.  The project required a baseline survey with P.I.’s set in the field.  GOTECH surveyed 400 foot wide cross sections every 500 feet along the levee route.  Two detailed topographic surveys were also conducted at a future structure site and at the northern end of the levee.  GOTECH coordinated with the design engineer to provide the data suitable for further mapping and design activities.  GOTECH also provided right-of-way surveying services on the project.  Boundary surveys were conducted on approximately 30 parcels to identify land areas required for the levee construction.


Mississippi River Intermodal Terminal and Yard Improvements

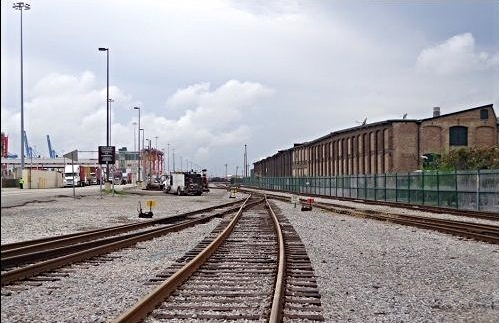

Working as a sub-consultant to AECOM, GOTECH provided surveying and mapping services at the Port of New Orleans.  GOTECH field crews conducted a topographic survey of a 12 acre rail yard between the Napoleon Avenue commerce terminal and the Louisiana Avenue terminal.  GOTECH also surveyed the Clarence Henry truck way in the project area and at the Napoleon Avenue intersection.  For the mapping services, GOTECH provided a plan view topographic map and a digital terrain model (DTM) for ground contours.
